Product Introduction

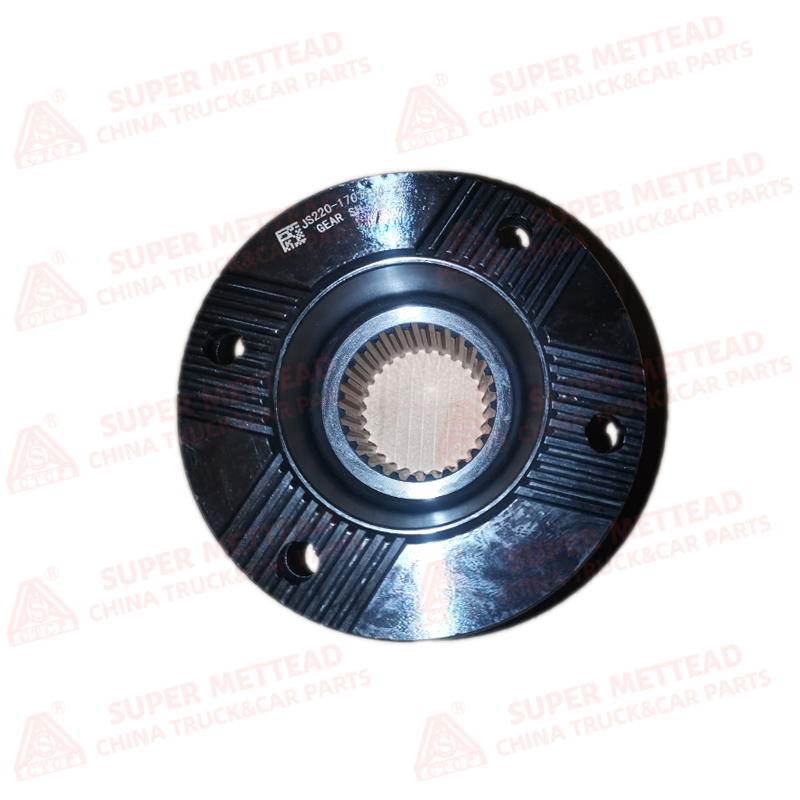

• Structure: Integral precision-forged high-strength alloy steel (40Cr), featuring a splined inner bore for main shaft connection, a bolted flange for drive shaft mounting, and a black oxide anti-corrosion finish. The splined bore is precision-ground for a tight fit, and the flange surface is machined for flatness to ensure vibration-free operation.

• Performance: The high-strength forging withstands extreme torque (up to 2200N·m) and impact forces, while the precision-machined splines ensure reliable power transfer. The flat flange surface minimizes vibration and prevents drive shaft misalignment.

Core Function

1. Power Transfer: Transmits torque from the transmission main shaft to the drive shaft, delivering power to the drive axle.

2. Connection Interface: Provides a rigid, bolted connection between the transmission and drive shaft, ensuring precise alignment and vibration-free operation.

3. Heavy-Load Durability: Withstands extreme torque and vibration in heavy hauling, long-haul, and off-road conditions.

Transmission Output Flange JS220-1701159-7 Fast Gear – OEM-Quality Replacement for Fast Gearbox Systems

When your heavy-duty truck’s drivetrain depends on flawless power transfer, every component matters — especially the transmission output flange. The Transmission Output Flange JS220-1701159-7 Fast Gear is precision-engineered to deliver reliable torque transmission from your Fast gearbox to the driveshaft, ensuring smooth operation under the most demanding conditions. Sourced directly from Mettlead’s factory in China, this flange offers the perfect balance of OEM-grade quality and competitive pricing that procurement managers worldwide trust.

Whether you’re maintaining a fleet of SINOTRUK HOWO trucks or servicing SHACMAN heavy haulers, this output flange is built to keep your vehicles running without costly downtime. Let’s dive into exactly why this component stands out in the market.

Key Features and Benefits of the Transmission Output Flange JS220-1701159-7

Choosing the right transmission output flange isn’t just about fitment — it’s about long-term reliability and total cost of ownership. Here’s what makes this Fast Gear flange a smart investment for your operation:

• Precision-Machined Spline Interface — The flange features accurately cut splines that mate seamlessly with the Fast gearbox output shaft, eliminating play and reducing wear over time.
• High-Strength Alloy Steel Construction — Forged from premium alloy steel, this flange resists fatigue cracking and deformation even under continuous heavy-load cycles.
• Hardened Surface Treatment — Advanced heat treatment processes ensure the contact surfaces maintain their integrity across hundreds of thousands of kilometers.
• Direct OEM Dimensional Compatibility — Manufactured to match original Fast Gear specifications, so installation is straightforward with no modifications required.
• Corrosion-Resistant Finish — A protective coating guards against rust and environmental degradation, extending service life in harsh operating conditions.
• Factory-Direct Pricing — By sourcing directly from Mettlead, you eliminate middlemen and secure wholesale pricing without sacrificing quality control.

In other words, this isn’t a generic aftermarket part — it’s a purpose-built replacement that meets the same performance standards as the original component installed at the factory.

Technical Specifications – JS220-1701159-7 Output Flange

Accurate specs matter when you’re ordering transmission components for cross-border logistics. The table below provides the essential parameters for this Fast Gear output flange:

If you need detailed dimensional drawings or additional material certifications, our technical team can provide them upon request.

Application Scenarios – Where This Output Flange Fits

The Transmission Output Flange JS220-1701159-7 is specifically designed for Fast Gear (法士特) gearbox systems. It serves as the critical connection point between the transmission output shaft and the vehicle’s driveshaft assembly. Here’s where you’ll typically find this component at work:

• SINOTRUK HOWO Heavy-Duty Trucks — Equipped with Fast JS220 series transmissions for long-haul freight and construction applications.
• SHACMAN Delong Series — Commonly paired with Fast gearboxes in mining and logistics operations across Africa, Southeast Asia, and the Middle East.
• FAW J6/J7 Tractor Units — Many configurations utilize Fast transmissions where this flange serves as a high-wear replacement part.
• DONGFENG Kinland & Tianlong Models — Fleet operators frequently source this flange for scheduled maintenance programs.
• FOTON Auman Heavy Trucks — Compatible with select models running Fast Gear drivetrain packages.

Essentially, if your vehicle runs a Fast JS220 series gearbox, this output flange is engineered to be a drop-in replacement — no guesswork, no adaptation needed. You can explore more Fast Gearbox parts in our dedicated category, or browse our full range of gearbox components for other transmission brands.

OEM/ODM Capability – Custom Packaging and White-Label Solutions

At Mettlead, we understand that different markets have different branding requirements. That’s precisely why we offer flexible OEM and ODM services for the Transmission Output Flange JS220-1701159-7 and all our gearbox components:

• White-Label Packaging — We can ship parts in neutral packaging so you can apply your own brand identity for resale in your local market.
• Custom Packaging Design — Need branded boxes, labels, or inserts? Our team handles the entire packaging customization process from artwork to production.
• Strict Quality Control — Every batch undergoes dimensional inspection, hardness testing, and visual quality checks before shipment. We maintain full traceability records for each production run.
• Flexible Order Quantities — Whether you need a small trial order or container-load volumes, we adapt to your procurement schedule.
• Factory Visits Welcome — We encourage international buyers to visit our facilities in China. Seeing our production lines and QC processes firsthand builds the kind of trust that lasts.

In short, we don’t just sell parts — we build supply chain partnerships. Our goal is to make your sourcing process as simple and secure as possible.

Customer Case Study – Transmission Output Flange JS220-1701159-7 in Action

Earlier this year, a fleet maintenance company based in Nigeria reached out to Mettlead looking for a reliable source of Transmission Output Flange JS220-1701159-7 Fast Gear replacements. They were managing over 120 SINOTRUK HOWO trucks used for interstate haulage, and recurring flange failures from inconsistent aftermarket suppliers were causing expensive driveline vibrations and unplanned downtime.

After receiving sample units and verifying dimensional accuracy against their OEM specs, they placed an initial order of 200 pieces. The results spoke for themselves — over six months of operation, not a single flange from Mettlead showed premature wear or required early replacement. Their maintenance cycle extended by approximately 30%, and the total cost per unit dropped significantly compared to their previous supplier.

Today, this client sources not only the JS220-1701159-7 output flange but also synchronizer rings, gearbox bearings, and shift forks from our Fast Gearbox catalog. That’s the kind of long-term relationship we aim to build with every buyer.

Frequently Asked Questions – Transmission Output Flange JS220-1701159-7

What exactly does the transmission output flange do in a Fast gearbox?

The output flange serves as the mechanical bridge between the gearbox output shaft and the driveshaft. It transmits rotational torque from the transmission to the rest of the drivetrain. Because it handles constant rotational stress, it must be made from high-strength materials and machined to very tight tolerances — which is exactly what the JS220-1701159-7 delivers.

How do I confirm that the JS220-1701159-7 flange fits my specific vehicle?

The most reliable method is to match the OEM part number. If your vehicle uses a Fast JS220 series transmission and the original flange carries the number JS220-1701159-7, our replacement is a direct fit. If you’re unsure, send us your VIN or gearbox nameplate photo and our technical team will confirm compatibility.

What are common signs that this output flange needs replacement?

Typical symptoms include driveline vibrations at speed, unusual clunking noises during gear engagement, visible wear or scoring on the spline teeth, and oil leakage around the flange seal area. If left unaddressed, a worn flange can damage the driveshaft yoke and output shaft — leading to much costlier repairs.

Is this flange interchangeable with other Fast Gear part numbers?

No. Each output flange is designed with specific spline counts, diameters, and bolt patterns. The JS220-1701159-7 is unique to its gearbox configuration. Installing an incorrect flange can result in improper engagement, accelerated wear, or catastrophic drivetrain failure. Always verify the exact part number before ordering.

What quality assurance does Mettlead apply to this component?

Every Transmission Output Flange JS220-1701159-7 undergoes a multi-stage inspection process including raw material verification, dimensional measurement with CMM (Coordinate Measuring Machine), surface hardness testing, and final visual inspection. We maintain batch traceability, so if any issue arises, we can trace it back to the production run instantly.

Can I order a small quantity first to test quality?

Absolutely. We understand that trust is built over time, especially in cross-border trade. We offer flexible minimum order quantities specifically to allow new customers to evaluate our quality before committing to larger volumes.

Ready to Source Your Transmission Output Flange JS220-1701159-7?

Getting started is straightforward. Whether you need pricing for a single unit or a bulk quotation for your entire fleet’s maintenance schedule, our team responds quickly — typically within 24 hours.

Here’s what you can expect when you reach out:

1. Competitive factory-direct pricing with no hidden fees
2. Clear lead times tailored to your delivery schedule
3. Flexible, secure payment options (T/T, L/C, Trade Assurance)
4. Professional export packaging to protect parts during transit
5. Dedicated account support from inquiry through delivery

Don’t let drivetrain downtime eat into your profits. Contact us today to request a quotation for the Transmission Output Flange JS220-1701159-7 Fast Gear, and discover why procurement managers across 30+ countries choose Mettlead as their trusted Chinese truck parts supplier.
