Water Spray Truck: Specifications, Applications & Suppliers
Water spray trucks are essential multi-purpose special vehicles for global construction, municipal and environmental projects. They are also known as water sprinkler trucks or water tankers in international markets.
Different from standard cargo trucks, this specialized vehicle integrates a large water tank, professional water pump system and multi-angle spraying nozzles. It completes water transportation and on-site spraying tasks in one single trip.
For fleet owners, municipal managers and overseas contractors, choosing a qualified water spray truck directly boosts daily operational efficiency. It also helps meet local environmental protection and dust control regulations.
Most new international buyers struggle with chassis selection, tank capacity matching and export configuration standards. They also find it hard to locate reliable Chinese manufacturers for long-term cooperation.
This detailed buying guide covers core specs, real application scenarios, customizable export options, supplier selection skills and common purchase pitfalls. For verified export-grade water spray trucks, you can check reliable solutions from Mettlead Truck official site.
What Is A Water Spray Truck and Core Working Principle
A water spray truck is a custom commercial vehicle built on heavy-duty truck chassis. Its core structure includes a sealed anti-corrosion water tank, high-efficiency water pump and multi-group spraying nozzles.
The whole working process is simple and efficient. The self-priming pump absorbs water from rivers, pools and fixed water sources and stores it in the sealed tank.
During operation, the pump outputs water with stable pressure. Different nozzle groups release water in mist, fan-shaped or linear forms to finish dust suppression, road washing and irrigation work.
In addition to basic water storage and spraying functions, modern export water spray trucks support multiple upgraded modules. These practical upgrades greatly expand application scenarios and improve vehicle utilization.
Main Functional Components of Water Spray Trucks
A qualified export water spray truck consists of several core components. Each part directly affects working stability, spraying effect and overall service life.
The water tank serves as the main water storage carrier. Regular export models adopt carbon steel or stainless steel materials. Professional anti-rust and anti-corrosion treatment is implemented inside and outside the tank for long-term service.
The water pump is the power core of the spraying system. It controls water absorption speed, outlet pressure and spraying distance. Manufacturers match different pump models according to customer working intensity.
Multi-position nozzles undertake different functional tasks. Front nozzles clean road surfaces, rear nozzles spray fine mist for dust reduction, and side nozzles support greening irrigation. Most models are equipped with a rear high-pressure water cannon for long-distance operation.
Standard auxiliary parts include liquid level gauges, overflow valves, drain valves and internal anti-wave baffles. The built-in baffles effectively reduce water sloshing during driving and greatly improve driving safety.
Common Applications of Water Spray Trucks
Water spray trucks feature strong versatility and flexible configuration. They are widely used in municipal engineering, construction, mining, agriculture and emergency rescue fields worldwide.
Different chassis and tank capacity combinations adapt to diverse working environments. Buyers can adjust configurations according to their core usage scenarios.

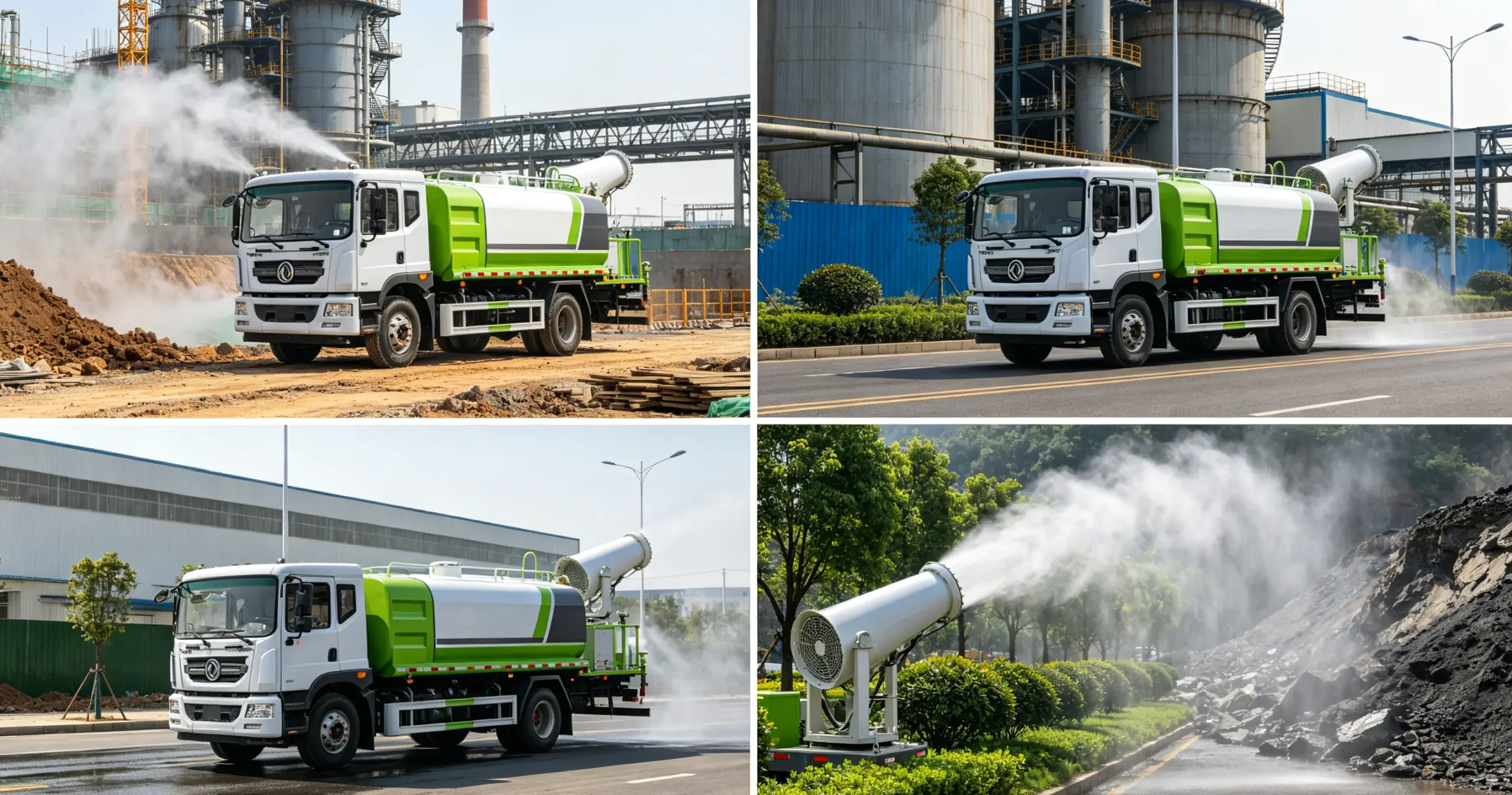

Dust Suppression for Construction and Mining Sites
Dust control is the most mainstream application of water spray trucks. Open mining yards, stone crushing sites and large construction projects generate massive floating dust every day.
Flying dust endangers worker health and easily triggers local environmental penalties. Timely dust suppression is a mandatory daily task for most outdoor engineering fleets.
Water spray trucks release ultra-fine water mist to wrap and settle floating dust. Continuous spraying keeps on-site dust concentration within legal standards. Large-tank models are favored for all-day uninterrupted mining operations.
Municipal Road Cleaning and Maintenance
Urban municipal departments rely heavily on water spray trucks for daily road maintenance. Front low-pressure fan nozzles effectively flush road mud, sand and scattered garbage.
Clean road surfaces reduce pavement wear and extend the service life of asphalt and concrete roads. In hot dry seasons, water spraying lowers road surface temperature and avoids high-temperature cracking and aging.
Green Belt and Agricultural Irrigation
Water spray trucks provide flexible irrigation solutions for urban green belts, roadside trees and rural farmland. Adjustable side nozzles output gentle water flow to protect plant roots and leaves.
This vehicle is especially suitable for areas without fixed irrigation pipelines. It can deliver water to scattered planting plots and remote drought-stricken farmland.
It is an ideal tool for seasonal drought resistance and seedling protection. For more special engineering vehicle options, visit the all-categories product page.
Emergency Fire Assistance and Disaster Relief
Most export water spray trucks come with a 360° rotatable high-pressure water cannon. Though not a replacement for professional fire trucks, they offer effective emergency fire suppression for small-scale fires.
In disaster relief scenarios, these trucks can transport clean domestic water to communities with damaged water supply systems. They provide reliable water guarantee for drought relief and post-disaster reconstruction.
Other Practical Scenarios
Water spray trucks also serve airport runway cleaning, port yard dust control and highway slope maintenance. They can finish sanitary cleaning and dust reduction for livestock farms as well.
With simple parameter adjustment and accessory matching, one vehicle can handle multiple seasonal tasks and maximize fleet utilization rate.
Main Chassis and Axle Configurations
Chassis axle layout determines tank capacity, load capacity and road adaptability. Three mainstream configurations are available for global export markets: 4×2, 6×4 and 8×4.
Each model has targeted applicable scenarios. Buyers can select according to site road conditions, daily water demand and local traffic load limits.
4×2 Water Spray Truck
The 4×2 two-axle chassis features flexible operation and a small turning radius. It adapts to narrow urban roads, residential communities and compact small construction sites.
Its standard tank capacity ranges from 5m³ to 10m³. The lightweight design reduces fuel consumption and daily operating costs.
This model is the best choice for municipal daily cleaning, park greening irrigation and small-site dust control. It is widely purchased by small fleets and urban management departments.
6×4 Water Spray Truck
The 6×4 three-axle model is the most popular export water spray truck. Dual rear drive axles provide strong load-bearing capacity and stable driving performance.
Its tank capacity covers 10m³ to 20m³. It balances large water storage capacity and on-site flexibility perfectly.
It suits medium and large construction projects, highway engineering and mining dust suppression. Larger single-trip water volume effectively reduces repeated water filling frequency and improves working efficiency.
8×4 Water Spray Truck
The 8×4 four-axle chassis supports the largest tank capacity, ranging from 20m³ to 30m³. Multi-axle dispersion meets strict axle load limit standards in most countries.
This heavy-duty model is designed for large open mines, super infrastructure projects and long-distance water transportation tasks.
Due to its long body and large turning radius, it is not applicable for narrow urban roads and crowded working areas. It focuses on large-scale, long-duration outdoor operations.
Key Specifications of Export Water Spray Trucks
Reasonable parameter matching is the core of purchasing qualified water spray trucks. Many buyers only focus on tank capacity and ignore key supporting parameters, leading to unregistered or inefficient vehicles after delivery.
The following export standard specifications cover all key indicators for overseas order confirmation and local road legal operation.
Water Tank Volume and Material Options
Tank volume directly decides single-trip water carrying capacity. Buyers must match the volume with chassis legal load and local road weight limit standards.
Carbon steel tanks are the standard cost-effective option. They fully meet conventional road washing and dust suppression needs.
Stainless steel tanks are upgraded configurations. They feature better anti-rust and anti-corrosion performance, suitable for drinking water transportation and long-term high-humidity operation.
Internal anti-wave baffles are standard for all export-grade tanks. They prevent violent water shaking during driving and eliminate major driving safety hazards.
Water Pump Performance Parameters
Pump flow rate and working pressure determine spraying distance and overall working efficiency. Different working scenarios require matched pump configurations.
Low-pressure pumps adapt to wide-range road washing and greening irrigation. High-pressure pumps support long-distance water cannon spraying and fine mist dust suppression.
Most export models are equipped with self-priming pumps. They can automatically absorb water from open water sources without auxiliary equipment, greatly improving on-site convenience.
Nozzle Layout and Spraying Range
Standard export water spray trucks adopt four-group nozzle layout: front spraying, side sprinkling, rear mist spraying and rear water cannon.
Each functional group supports independent switch control. Operators can freely switch working modes according to on-site demands.
The rear water cannon supports 360° free rotation. Its maximum spraying distance reaches 25 to 40 meters. It can switch between linear water column and atomized water mist flexibly.
Chassis Engine and Emission Standards
Export vehicles support multiple international emission standards, including Euro 2, Euro 3, Euro 4 and Euro 5. Buyers must select specifications compliant with local environmental inspection policies.
Engine horsepower is matched according to total vehicle weight. Large-capacity tanks and heavy-load operation require high-horsepower engines to ensure power stability on rough and sloped roads.
Customization Options for Export Orders
Chinese professional manufacturers provide rich personalized customization services. All configurations can be adjusted according to local climate, road conditions and traffic rules.
Targeted customization ensures the vehicle perfectly adapts to local working environments and avoids configuration redundancy or insufficiency.
Left Hand Drive or Right Hand Drive
The factory supports full left-hand drive and right-hand drive customization. It adjusts the steering system, dashboard and control assembly in line with the buyer’s national traffic rules.
Customized driving modes ensure legal road operation and convenient driver operation in local regions.
Anti-Corrosion and Special Climate Upgrades
For coastal high-salt and high-humidity areas, enhanced anti-corrosion coating is added to the tank and chassis to resist salt erosion.
For cold freezing regions, anti-freeze pipelines and tank heating systems are optional to prevent water freezing and pipeline cracking in low-temperature environments.
For tropical high-temperature areas, heat-resistant wiring and rubber accessories are upgraded to slow down aging and extend service life.
Optional Extra Accessories
Common practical upgrades include wireless remote control for water cannon, digital liquid level display and automatic sprinkler control system.
Backup cameras, reversing alarms and high-pressure cleaning hose reels are optional auxiliary accessories to improve operation safety and functionality.
How to Choose Reliable Water Spray Truck Suppliers
Excellent product quality depends on reliable suppliers. Choosing formal export manufacturers can avoid configuration errors, incomplete documents and poor after-sales service risks.
The following selection criteria help overseas buyers screen high-quality long-term cooperative partners efficiently.
Factory Direct Manufacturer vs Trading Company
Direct manufacturers own complete production workshops and professional testing equipment. They control the whole process from chassis assembly to tank welding and vehicle debugging.
Factories can adjust technical parameters and personalized details flexibly according to buyer needs. They provide stable quality control and production cycle guarantee.
Trading companies lack independent production and debugging capabilities. They rely on factory cooperation, leading to slow response for technical problems and after-sales failures.
For bulk export orders and long-term cooperation, direct factory cooperation is more secure. You can check enterprise strength and production details on the about-us page.
Check Export Document Capability
Complete export documents are the premise of smooth customs clearance and local vehicle registration. Formal suppliers provide full sets of qualification certificates and customs clearance materials.
Key documents include factory inspection reports, vehicle qualification certificates, packing lists and commercial invoices. Buyers must confirm document support capability before ordering.
After-Sales and Spare Part Supply Ability
Water spray trucks have multiple wearing parts such as pump seals, nozzles and pipeline valves. Stable spare part supply is the key to sustainable fleet operation.
Reliable export suppliers provide long-term global spare part support and remote technical guidance. They help local workers solve daily faults quickly.
Buyers need to confirm the warranty scope and cycle of chassis and upper equipment separately. For detailed after-sales policies, refer to the customer-service page.
Common Buying Mistakes to Avoid
Most post-purchase problems are caused by simple selection mistakes. Avoiding the following common pitfalls can effectively protect overseas buyers’ investment benefits.
Choosing Too Large Tank Volume Beyond Local Load Rules
Many buyers blindly pursue large tank capacity to reduce water filling times. However, excessive load will exceed local axle load limits.
Overloaded vehicles cannot complete legal registration and road operation. Long-term overload also causes chassis deformation, tire wear and increased accident risks.
Ignoring Pump Quality and Material Standard
Low-price inferior configurations usually match thin steel plates and low-quality water pumps. These parts look the same as standard products in appearance.
After several months of high-intensity operation, inferior equipment is prone to water leakage, pipeline rupture and tank rust. It leads to frequent downtime and increased maintenance costs.
Neglecting Operation Training for Local Operators
Standardized operation directly affects vehicle service life. Wrong water filling and pump starting steps will damage the hydraulic and spraying system.
Formal suppliers provide English operation manuals and video teaching materials to help local drivers and maintenance workers master standard operation skills.
Maintenance Tips to Extend Truck Service Life
Scientific daily maintenance can effectively reduce failure rate and extend the service life of water spray trucks. Simple regular inspection greatly cuts long-term fleet operation costs.
Daily Inspection Before Operation
Operators need to check pipeline connections, valve status and liquid level before starting work. Inspect welds and joints for water leakage.
Test pump and nozzle functions in advance to ensure normal spraying effect. Fix minor faults immediately to avoid enlarged failures during formal operation.
Seasonal Maintenance Work
In cold seasons, drain all residual water in tanks, pumps and pipelines after daily work. This prevents pipeline cracking caused by water freezing and expansion.
In hot and rainy seasons, regularly check the anti-rust coating. Repair peeling paint in time to avoid chassis and tank corrosion.
Regular Replacement of Wearing Parts
Nozzle tips, rubber gaskets and pump seals are vulnerable wearing parts. They need regular inspection and periodic replacement.
Preparing spare wearing parts in advance minimizes on-site downtime and ensures continuous and stable fleet operation.
Export Shipping and Delivery Process Overview

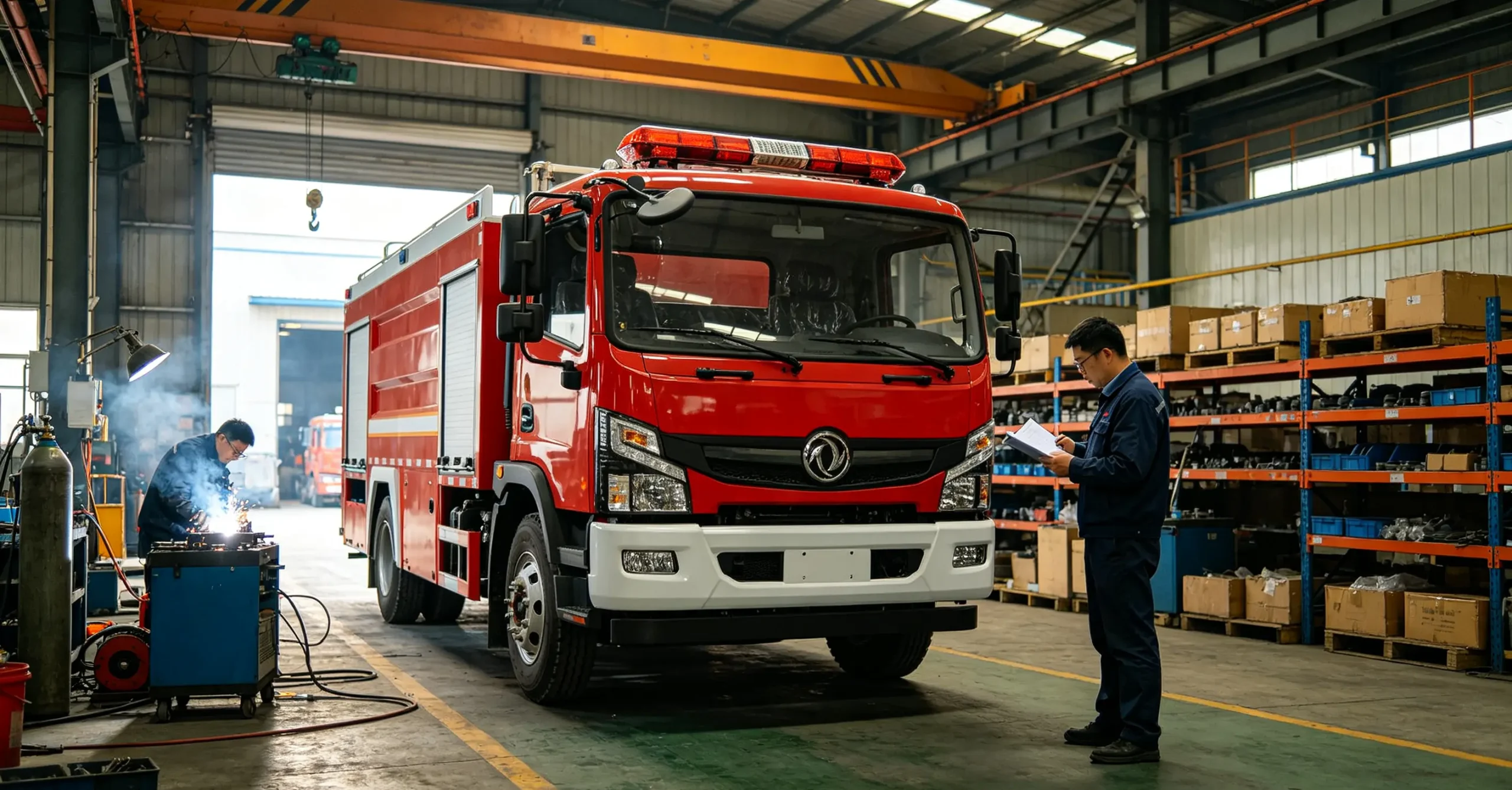

After production and quality inspection are completed, the vehicle will enter professional packaging and international shipping links.
According to vehicle size and customer budget, the factory supports roll-on roll-off shipping and container shipping. All exposed parts are professionally protected before shipment.
The team provides real-time production photos and finished vehicle videos for customer confirmation before loading. For more professional export knowledge of special trucks, browse the knowledge base page.
Real Project Cases of Export Water Spray Trucks
Chinese water spray trucks have been exported to more than 50 countries and regions. They serve municipal construction, mining development and infrastructure projects worldwide.
African mining customers prefer 6×4 large-tank reinforced models. These vehicles adapt to harsh unpaved roads and support long-hour continuous dust suppression work.
Southeast Asian municipal orders favor compact 4×2 models. Their flexible body adapts to narrow urban roads and daily greening irrigation needs.
For more real overseas cooperation cases and project effects, check the cooperative case page.
Final Summary
Water spray trucks are versatile and cost-effective special vehicles. Three mainstream chassis configurations (4×2, 6×4, 8×4) cover all scenarios from municipal daily use to large-scale engineering operation.
They efficiently complete dust suppression, road cleaning, greening irrigation and emergency water transport tasks. Reasonable configuration matching and standardized maintenance ensure long-term stable operation.
Choosing qualified Chinese export manufacturers guarantees product quality, complete customs clearance documents and professional after-sales support.
If you need customized configuration schemes, detailed parameter sheets and exclusive export quotations, contact our professional team for one-to-one service via the contact-us page.
