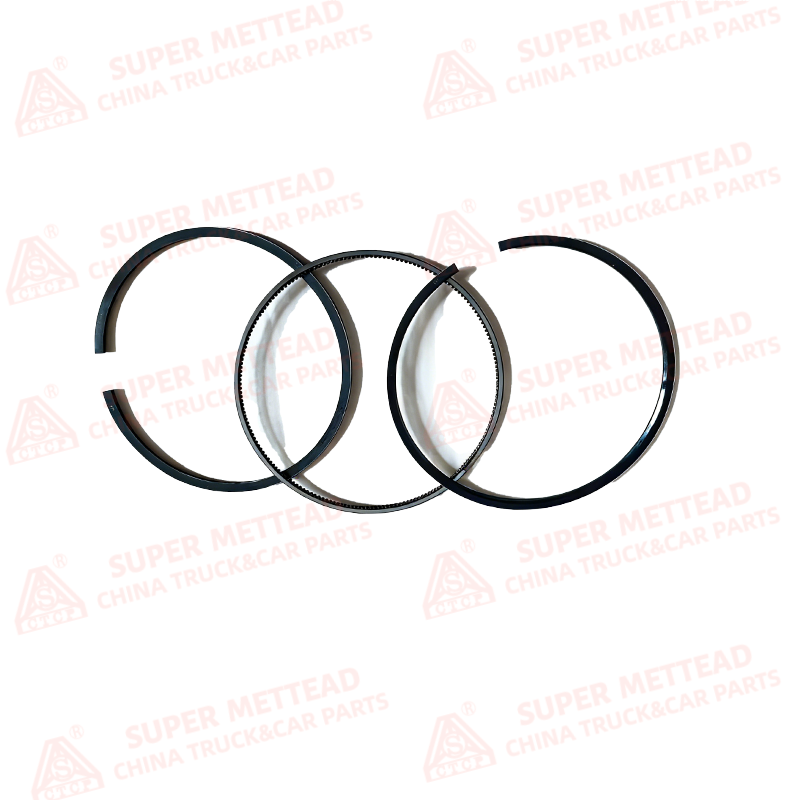

Product Introduction: A complete piston ring set consisting of two compression rings and one oil control ring. The top compression ring (3698032) is made of cast iron with a nitride coating for wear resistance, the second compression ring (3698033) has a taper-faced design for improved sealing, and the oil control ring (3698036) features a spring expander and scraper rails to manage oil distribution.

Product Function: The compression rings seal the combustion chamber to prevent gas leakage, ensuring efficient power output and reducing fuel consumption. The oil control ring scrapes excess oil from the cylinder wall to prevent it from entering the combustion chamber, which reduces oil consumption and minimizes carbon deposits.

Piston Ring for Cummins ISG11/ISG12 Diesel Engines – Model 3698032 / 3698033 / 3698036

When your fleet depends on Cummins ISG11 or ISG12 power, every component inside the combustion chamber must perform flawlessly under extreme heat and pressure. The piston ring set — comprising models 3698032, 3698033, and 3698036 — serves as the critical seal between the piston and cylinder wall, governing compression efficiency, oil control, and overall engine longevity. METTLEAD Truck Parts supplies these precision-engineered piston rings at factory-direct pricing, backed by strict quality control that meets or exceeds OEM specifications. Whether you are rebuilding a single engine or sourcing bulk quantities for workshop inventory, these rings deliver the sealing integrity your Cummins ISG-series engines demand.

Key Functions and Benefits of the Cummins ISG11/ISG12 Piston Ring Set

Superior Combustion Sealing

The top compression ring (3698032) maintains a gas-tight seal at peak cylinder pressures exceeding 200 bar, preventing blow-by gases from escaping into the crankcase. This preserves full combustion force on the power stroke, keeping fuel efficiency within factory-rated parameters.

Optimized Oil Control

The oil control ring (3698036) features a precision-machined conformable design with spring-loaded segments that scrape excess lubricant from the cylinder wall while leaving a controlled micro-film. This reduces oil consumption — typically maintaining rates below 0.1% of fuel consumption — and prevents carbon buildup on piston crowns.

Enhanced Thermal Resistance

Manufactured from high-grade alloy cast iron and steel with PVD (Physical Vapor Deposition) or chrome-ceramic coatings, these rings resist thermal degradation at sustained operating temperatures above 350°C. The second ring (3698033) acts as a thermal barrier, reducing heat load on the top ring by approximately 20%.

Extended Service Life

Advanced surface treatments — including nitriding and DLC (Diamond-Like Carbon) coatings — reduce friction coefficients to as low as 0.04, dramatically slowing wear progression. Under standard operating conditions, these piston rings maintain sealing effectiveness for 500,000+ km before requiring replacement.

Direct Cost Savings for Procurement Teams

• Factory-direct pricing eliminates middleman markups, reducing per-unit cost by 20–35% compared to traditional distribution channels
• Reduced engine downtime through precise fitment — no machining or modification required
• Lower warranty claim rates due to OEM-equivalent dimensional accuracy (tolerance within ±0.005 mm)
• Bulk order flexibility — MOQ as low as 10 sets with volume discounts available

Technical Specifications — Piston Ring Set for Cummins ISG11/ISG12

Application: Vehicle Models and Engine Configurations

The Cummins ISG11 and ISG12 engines power a wide range of heavy-duty commercial vehicles across global markets. These piston rings fit seamlessly into the following applications:

• SINOTRUK SITRAK C7H / G7 — Long-haul tractor units equipped with Cummins ISG12 (460–560 HP)
• SINOTRUK HOWO T7H / A7 — Heavy-duty logistics trucks with ISG11 (400–440 HP) configurations
• FAW Jiefang J7 / JH6 — Premium highway tractors running Cummins ISG12 powertrains
• Foton Auman EST-A — Intelligent heavy trucks with ISG11 engine platform
• Dongfeng Tianlong KX / KL — Regional and long-distance haulers with Cummins ISG-series engines
• Shacman X6000 — High-efficiency tractors powered by ISG12 (550 HP)

Whether your fleet operates in Middle Eastern heat, Southeast Asian humidity, or African terrain conditions, these piston rings maintain their sealing integrity across the full ISG11/ISG12 operating envelope. Explore our complete range of Cummins engine components for additional ISG-series parts.

OEM/ODM Capability — White-Label and Custom Packaging

METTLEAD Truck Parts understands that distributors and workshop chains need more than just quality parts — they need brand consistency. Our OEM/ODM services for Cummins ISG11/ISG12 piston rings include:

• White-label packaging — Your brand identity on every box, with custom part numbers and barcodes
• Custom packaging design — From individual ring pouches to multi-set workshop kits, tailored to your market’s requirements
• Private labeling — Full branding services including logo printing on anti-corrosion wrapping and outer cartons
• Quality documentation — Certificates of conformity, material test reports, and inspection records under your company header
• Flexible MOQ — Small trial orders available to validate market fit before scaling

Every piston ring leaving our facility undergoes dimensional inspection, surface roughness measurement, elastic pressure testing, and visual quality checks. Our reject rate consistently holds below 0.3%, ensuring your customers receive parts that install and perform exactly as expected.

Customer Case Study: ISG12 Fleet Overhaul in the Middle East

A regional distributor based in Saudi Arabia approached METTLEAD in Q2 2024, seeking a reliable supply of Cummins ISG12 piston rings (3698032/3698033/3698036) for a fleet maintenance contract covering 120+ SITRAK C7H tractors operating on intercity freight routes.

Challenge: The client’s previous supplier delivered piston rings with inconsistent end gaps, leading to elevated blow-by readings and premature oil consumption in 15% of rebuilt engines. This triggered warranty callbacks costing approximately $800 per engine in labor and re-inspection.

Solution: METTLEAD supplied 200 complete piston ring sets with full dimensional inspection reports. Each ring was verified for end gap, axial height, and radial wall thickness within ±0.005 mm tolerance. Custom packaging with the client’s branding and Arabic-language documentation was included.

Results after 6 months:

• Zero warranty claims related to piston ring performance across all 200 sets installed
• Oil consumption readings averaged 0.08% of fuel consumption — well within Cummins factory specifications
• Compression test values uniform across all six cylinders (deviation <3%)
• Client expanded orders to include liner kits, main bearings, and valve train components for the same ISG12 engines

This partnership demonstrates how sourcing Cummins ISG11/ISG12 piston rings from a quality-focused manufacturer eliminates the hidden costs of inconsistent aftermarket parts.

Frequently Asked Questions — Cummins ISG11/ISG12 Piston Rings

What is the difference between piston ring models 3698032, 3698033, and 3698036?

Each model serves a distinct function within the ring pack. The 3698032 is the top compression ring responsible for primary combustion gas sealing. The 3698033 is the second compression ring that manages residual pressure and assists with heat transfer from the piston to the cylinder wall. The 3698036 is the oil control ring that regulates lubrication film thickness and prevents excess oil from entering the combustion chamber. All three must be replaced together as a matched set to maintain proper engine performance.

Are these piston rings compatible with both ISG11 and ISG12 engine variants?

Yes. The Cummins ISG11 (10.5L) and ISG12 (11.8L) share an identical 130 mm bore diameter and piston ring groove geometry. Models 3698032, 3698033, and 3698036 are factory-specified for both displacement variants. The difference between ISG11 and ISG12 lies in stroke length, not bore size, so the same ring set fits both engines without modification.

How can I verify the piston ring end gap meets specifications during installation?

Insert each ring squarely into the cylinder bore (approximately 20 mm below the deck surface) using an inverted piston as a guide. Measure the end gap with a feeler gauge. The top ring (3698032) should read 0.30–0.50 mm, the second ring (3698033) should measure 0.40–0.65 mm, and the oil ring (3698036) rails should show 0.20–0.50 mm. Gaps below minimum indicate potential seizure risk; gaps above maximum suggest compression loss.

What causes premature piston ring failure in ISG11/ISG12 engines?

The most common causes include contaminated intake air (damaged or bypassed filtration), fuel dilution in the oil reducing lubrication film strength, excessive cylinder bore wear or distortion beyond 0.05 mm out-of-round, and improper ring installation orientation. Using rings that fail to meet OEM dimensional tolerances — particularly axial height and elastic pressure — dramatically accelerates wear and blow-by progression.

What is the recommended replacement interval for these piston rings?

Under standard long-haul operating conditions with proper maintenance, Cummins ISG11/ISG12 piston rings typically maintain effective sealing for 500,000–800,000 km. However, replacement should be based on condition monitoring: oil consumption exceeding 0.15% of fuel, compression test deviation greater than 10% between cylinders, or visible blow-by smoke warrant ring inspection regardless of mileage.

Do these piston rings require a break-in period after installation?

Yes. A controlled break-in period of 1,500–2,000 km is essential for optimal ring-to-bore conformity. During this phase, avoid sustained full-load operation, vary engine speed between 1,200–1,800 RPM, and limit boost pressure. The plateau honing pattern on the cylinder bore works with the ring surface coating to establish the ideal running surface within this mileage window.
